POS Designer

Where: Settings > POS Designer
Who can use it: Permission settings.update or manage settings.
Open this page in SureTill

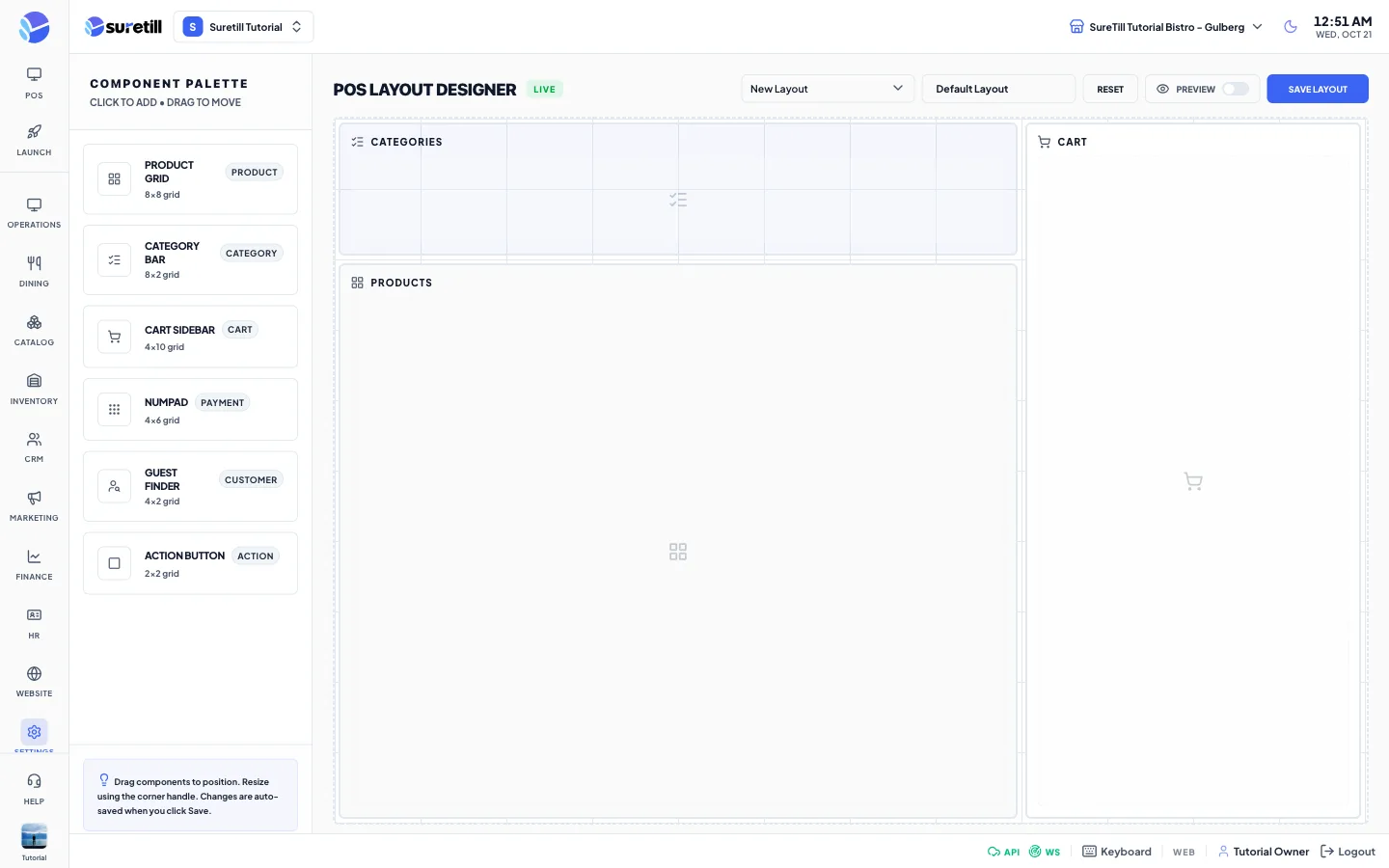

The designer works on a grid of 12 columns and 10 rows. You add blocks from the palette, drag them into place, resize them, and save the layout with a name. Saved layouts are stored on the server and listed in the Layout list.

Tip

In this version the layouts are saved and loaded inside the designer. The live POS terminal keeps its own screen design. To change colors, category position and tile style of the live POS, use Settings > Theme. To change which buttons sit beside the cart, use the Action Buttons page.

Step by step

Build a layout

1. Open Settings > POS Designer.
2. Tap a block in the Component Palette. It is added at the top left of the canvas. The first three blocks (Categories, Products, Cart) are on the canvas already.
3. Drag a block to move it. It snaps to the grid and cannot leave the canvas.
4. Drag the corner handle of a block to resize it.
5. Tap a block to select it and fine-tune it in the Properties panel.
6. Type a name in “Layout Name”.
7. Tap Save Layout. You see “Layout saved successfully”.

Open, change and delete a saved layout

1. Open the Layout list at the top (“New Layout” is the first entry) and pick a saved layout. It loads onto the canvas and its name appears in the name box.
2. Change the blocks and tap Save Layout to update that layout.
3. To remove a block, tap the small remove button on the block or tap Delete in the Properties panel.
4. To copy a block, select it and tap Clone. The copy is offset by one cell and called “name Copy”.

Preview

1. Switch on the Preview toggle in the toolbar. A window shows how the layout looks with all the blocks and their labels.

Start again

1. Tap Reset. After you confirm “Reset layout? All unsaved changes will be lost.” the canvas returns to Categories, Products and Cart.

Careful

Reset throws away everything on the canvas that you have not saved, and switches back to a new layout. A saved layout is not deleted by Reset.

Every setting explained

Component palette

Setting	What it does
Product Grid (8 x 8)	The product tiles.
Category Bar (8 x 2)	The row of menu categories.
Cart Sidebar (4 x 10)	The cart.
Numpad (4 x 6)	The number pad for payments.
Guest Finder (4 x 2)	The customer search box.
Action Button (2 x 2)	A single button block. What a button does is set on the Action Buttons page.

Toolbar

Setting	What it does
Layout list	Choose “New Layout” or a saved layout.
Layout Name	The name saved with the layout.
Reset	Back to the three default blocks.
Preview	A toggle that opens the preview window.
Save Layout	Creates a new layout, or updates the one you loaded.
Delete	Only visible when a saved layout is loaded. After you confirm “Delete this layout?” it removes that saved layout.

Properties panel (for the selected block)

Setting	What it does
Label	The name written on the block.
Size (Grid Units): Width and Height	Minus and plus buttons. Width is 1 to 12 and height is 1 to 10.
Position X and Y	Where the block starts on the grid. Shown for reading; move the block by dragging.
Background	Five colors to choose from for the block.
Clone	Makes a copy of the block.
Delete	Removes the block from the canvas.
